LS-10K-H1 Hybrid Solar Inverter

LS-10K-H1 Hybrid Solar Inverter

10kW · Single-phase 220 V · 98.2%

Single-phase hybrid, 10 kW charge/discharge

Application scenario: Luxury villa + energy storage

Brand : Guangxi
Spu : LS-10K-H1
Request a Quote
  • Overview

Overview

Key Specifications at a Glance

⚡
10kW
Rated Power Output
📊
97.6%
Maximum Efficiency
🔋
150-550V
Battery Voltage Range
🌐
Dual MPPT
Maximum Power Point Tracking
⏱️
10ms
Backup Switching Time
🛡️
IP65
Protection Rating

Product Overview

The GUANGXI LS-10K-H1 Hybrid Inverter represents the pinnacle of residential solar energy technology, seamlessly integrating solar power generation, intelligent energy storage, and grid connectivity. Designed specifically for modern villas and premium residences, this 10kW powerhouse delivers exceptional efficiency, reliability, and smart energy management capabilities.

With industry-leading 97.6% conversion efficiency and dual MPPT technology, the LS-10K-H1 maximizes solar energy harvest even in partially shaded conditions. The intelligent battery management system supports a wide voltage range (150-550V), ensuring compatibility with mainstream energy storage solutions while optimizing charge and discharge cycles for extended battery life.

Experience true energy independence with 10ms ultra-fast backup power switching, AI-powered energy optimization, and comprehensive safety protection. Whether you're looking to reduce electricity bills, achieve energy self-sufficiency, or ensure uninterrupted power during outages, the LS-10K-H1 is your trusted partner in the clean energy revolution.


pc (2).jpg

Product Highlights

🔌

Flexible Battery Integration

Wide 150-550V battery voltage range supports mainstream lithium-ion and LFP batteries. Modular design allows capacity expansion from 10kWh to 40kWh, adapting to your growing energy needs.

🧠

AI Energy Management

Intelligent algorithms analyze weather forecasts, electricity prices, and usage patterns to automatically optimize solar self-consumption, peak-valley arbitrage, and backup power strategies, maximizing economic benefits.

⚡

10ms Fast Backup Switching

Industry-leading 10-millisecond switching time ensures seamless transition to backup power during grid outages. Your appliances won't even notice the difference—no interruption to computers, medical devices, or security systems.

🌞

Dual MPPT Optimization

Two independent Maximum Power Point Trackers allow mixed panel orientations and types, maximizing energy harvest from east-west roofs or partially shaded installations. Each MPPT operates independently for optimal performance.

📱

Smart Remote Monitoring

Monitor real-time power generation, consumption, battery status, and revenue data via mobile APP. Receive instant alerts for system faults, remotely adjust operating modes, and track your carbon footprint reduction.

🛡️

Comprehensive Safety Protection

Multi-layer protection including AFCI arc fault detection, rapid shutdown, overvoltage/undervoltage protection, and thermal management. IP65 weatherproof rating ensures reliable operation in harsh outdoor environments.

Technical Advantages

🏆 Industry-Leading Efficiency

At 97.6% maximum efficiency and 97.0% European efficiency, the LS-10K-H1 outperforms competitors by 0.5-1.0%, translating to $150-$250 in additional annual savings. Advanced SiC (Silicon Carbide) power devices minimize conversion losses, ensuring more solar energy reaches your home.

⚙️ Intelligent Load Management

Smart load prioritization automatically allocates available power to critical loads during backup mode. Configure essential circuits (refrigerator, security, medical devices) to receive priority, while non-essential loads (pool pump, EV charger) are temporarily suspended to extend backup duration.

💰 Peak-Valley Arbitrage

In regions with time-of-use electricity pricing, the LS-10K-H1 automatically charges batteries during off-peak hours (low electricity rates) and discharges during peak hours (high rates), saving $800-$1,200 annually. The system learns your local tariff structure and optimizes automatically.

🔄 Grid-Interactive Operation

Supports multiple operating modes: Self-Consumption, Feed-in Priority, Backup Only, and Time-of-Use. Seamlessly transitions between modes based on grid status, battery level, and user preferences. Export excess solar power to the grid for net metering credits in supported regions.

[Technical Diagram: Energy flow diagram showing solar → inverter → battery/home/grid pathways]

Application Scenarios


Residential Villas

Perfect for 200-400㎡ villas with 4-6 family members. Reduce electricity bills by 60-80%, achieve 75-85% energy self-sufficiency, and enjoy whole-home backup power during outages.

$2,400
Annual Savings
75%
Self-Consumption
6.5yr
Payback Period
0_2 (1).png

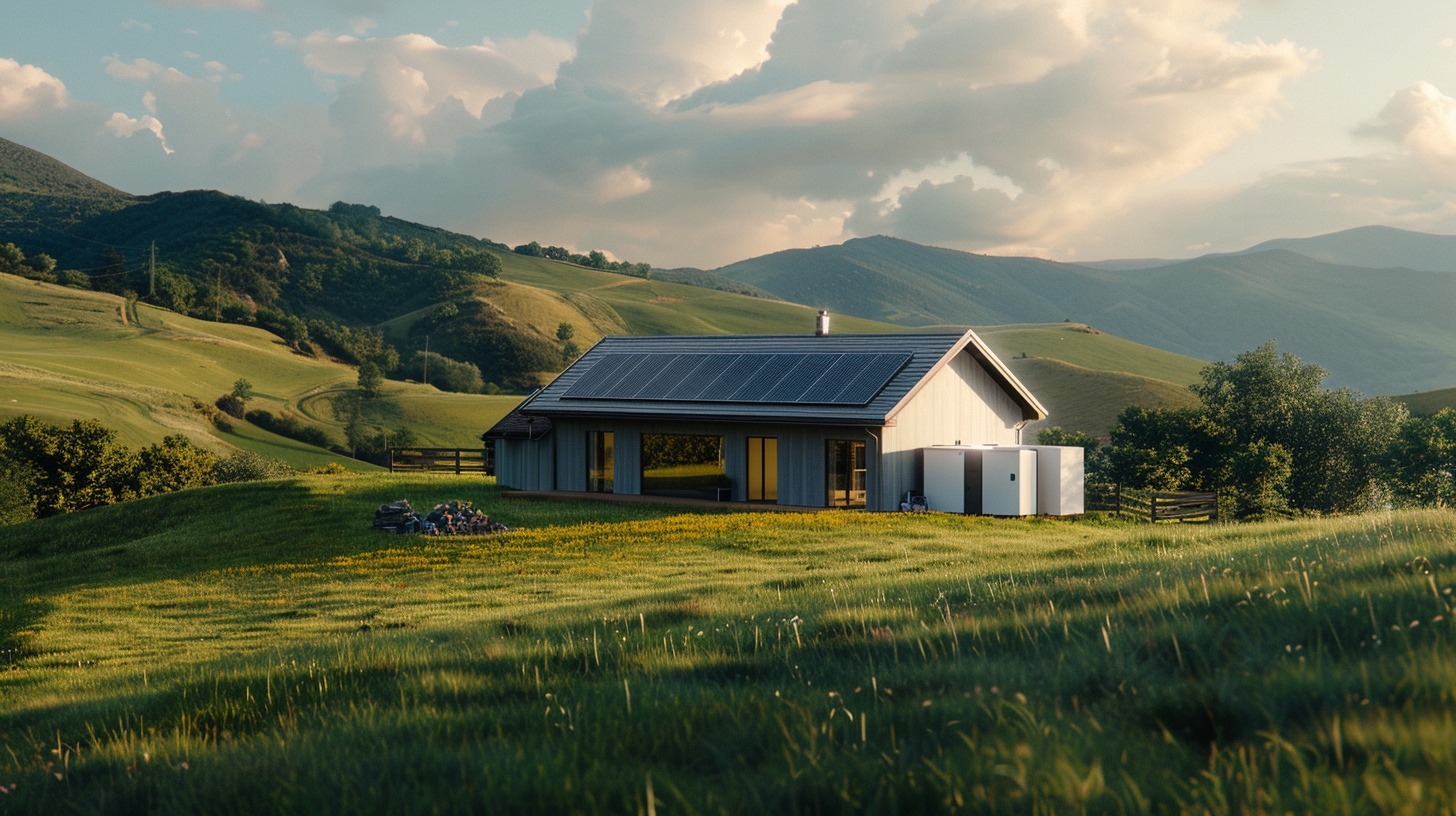

Rural Off-Grid Homes

Ideal for remote areas with unreliable grid or no grid access. Pair with 15-20kWh battery storage for 100% energy independence, eliminating diesel generator dependency and noise pollution.

$6,000
Annual Savings
100%
Energy Independence
5.5yr
Payback Period
0_0 (1).png

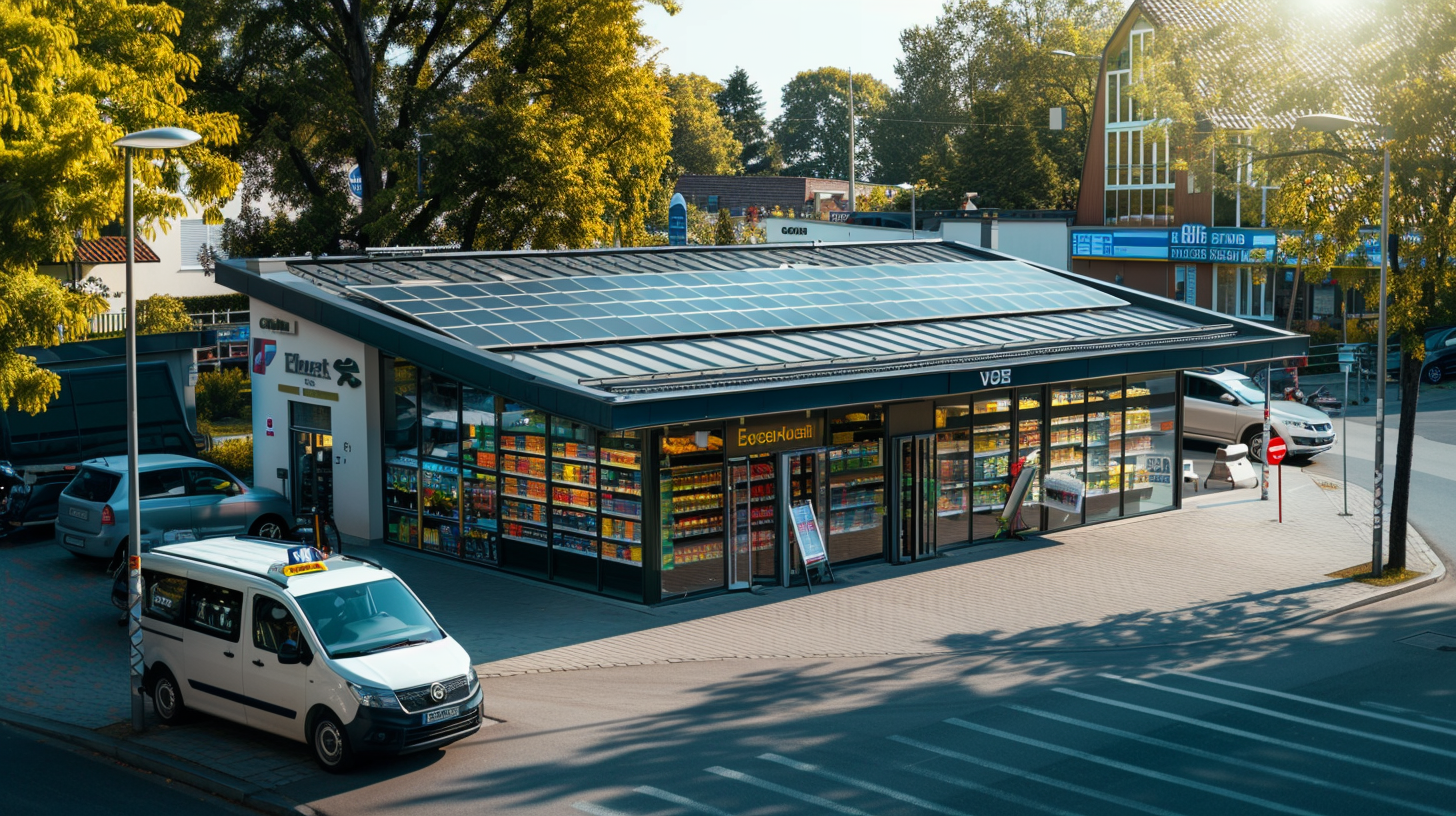

Small Commercial Buildings

Suitable for retail stores, offices, and clinics with daytime energy consumption. Maximize solar self-consumption during business hours, reduce demand charges, and ensure business continuity during power outages.

$5,280
Annual Savings
90%
Daytime Self-Use
4.2yr
Payback Period

Detailed Technical Specifications

PV Input Specifications
Maximum PV Input Power 13kW (130% overload capacity)
Maximum PV Input Voltage 600V DC
MPPT Operating Voltage Range 150-550V DC
Number of MPPTs / Strings per MPPT 2 / 2 (Total 4 strings)
Maximum Input Current per MPPT 12.5A
AC Output Specifications
Rated Output Power 10kW
Maximum Output Power 11kW (110% overload for 60 seconds)
Output Voltage 220/230/240V AC (configurable)
Output Frequency 50/60Hz (auto-detection)
Maximum Efficiency 97.6%
European Efficiency 97.0%
Battery Specifications
Battery Voltage Range 150-550V DC
Maximum Charge/Discharge Current 25A
Maximum Charge/Discharge Power 10kW
Battery Type Lithium-ion / LFP (LiFePO₄)
Protection & Safety
Protection Rating IP65 (outdoor installation capable)
Arc Fault Protection AFCI (Arc Fault Circuit Interrupter)
Rapid Shutdown Compliant with NEC 2017/2020
Islanding Protection Active frequency shift + voltage monitoring
Operating Temperature Range -25°C to +60°C (with derating above 45°C)
Physical & Installation
Dimensions (H × W × D) 600mm × 440mm × 200mm
Weight 32kg
Mounting Method Wall-mounted (bracket included)
Cooling Method Natural convection + intelligent fan
Noise Level <25dB (library-quiet operation)

Certifications & Standards

The LS-10K-H1 has passed rigorous testing and certification from global authorities, ensuring compliance with international safety and performance standards.

✓ CE (European Conformity)
✓ UL 1741 (North America)
✓ VDE-AR-N 4105 (Germany)
✓ AS/NZS 4777 (Australia/New Zealand)
✓ G98/G99 (United Kingdom)
✓ IEC 62109 (International)
✓ ISO 9001 Quality Management
✓ RoHS Compliant

Customer Success Stories

🇬🇧 London Villa - Energy Independence

Location: Suburban London, UK
System: 12kW PV + LS-10K-H1 + 14kWh Battery
Family: 4 people (250㎡ villa)

Results after 1 year:

  • Monthly electricity bill: £250 → £50 (80% reduction)
  • Annual savings: £2,400 (≈$2,976)
  • Self-consumption rate: 75%
  • Payback period: 6.7 years
  • Carbon emission reduction: 4.2 tons/year

"During the 2023 winter power crisis, while our neighbors experienced frequent outages, our home remained brightly lit and warm. This investment is truly worthwhile!"

🇦🇺 Queensland Farm - 100% Off-Grid

Location: Rural Queensland, Australia
System: 15kW PV + LS-15K-H1 + 28kWh Battery
Family: 5 people (180㎡ farmhouse)

Results after 1 year:

  • Energy independence: 100% (completely off-grid)
  • Diesel generator usage: 300hrs/yr → 20hrs/yr
  • Monthly energy cost: $600 → $100
  • Annual savings: $6,000
  • Payback period: 5.5 years
Generated Image November 18, 2025 - 7_45PM.png

"We achieved complete energy independence. Electricity costs dropped from $600 to $100 per month. Most importantly, we can finally enjoy quiet nights without generator noise."

Frequently Asked Questions

Q: What is the expected investment payback period?
A: Payback periods typically range from 4-8 years depending on local electricity rates, solar radiation, and government incentives. In high electricity cost regions (California, Germany, Australia), payback can be as short as 4-5 years. After payback, the system continues generating free electricity for 18-21 years, with cumulative lifetime savings of $30,000-$80,000.
Q: Can the system still generate power on cloudy or rainy days?
A: Yes. Solar panels generate 10-30% of sunny day output on cloudy days and 5-15% on rainy days. The intelligent battery storage system stores excess energy from sunny days for use during cloudy/rainy periods or at night, ensuring stable household power supply. The system can also automatically draw from the grid when needed.
Q: How long can the battery provide backup power?
A: With a 10kWh battery: Low load (1kW - lighting + refrigerator) provides ~10 hours; Medium load (2kW - lighting + refrigerator + TV) provides ~5 hours; High load (5kW - whole home including AC) provides ~2 hours. If solar panels continue generating during backup mode, duration extends significantly. For extended backup needs, we recommend 20-40kWh battery systems.
Q: How long does installation take?
A: Residential solar storage system installation typically takes 2-4 days depending on system size: Entry packages (6kW) take 2 days, Standard/Comfort packages (8-10kW) take 3 days, and Luxury/Premium packages (15-20kW) take 4 days. Our certified installation team minimizes disruption to your daily life and thoroughly cleans the site after completion.
Q: Does the system require regular maintenance?
A: Minimal maintenance required. Solar panels should be cleaned 1-2 times per year (more frequently in dusty areas) - simply rinse with water. Inverters and batteries require no regular maintenance; the system performs automatic self-checks and sends APP alerts if faults occur. We recommend annual professional inspections to check electrical connections and system performance. GUANGXI provides lifetime maintenance services including free annual health checks, firmware upgrades, and fault repairs.
Q: Is the system safe?
A: Absolutely. The LS-10K-H1 employs seven-layer safety protection: AFCI arc fault protection, rapid shutdown function, LFP battery with high thermal stability, BMS battery management, IP65 waterproof/dustproof rating, electrical protection (overcharge/over-discharge/short-circuit/over-temperature), and active protection with smoke/temperature sensors. The system has passed CE, UL1741, IEC62109, VDE certifications. Over 500,000 GUANGXI residential systems deployed globally with zero safety incidents.

Downloads & Resources

📄

Product Datasheet

Complete technical specifications, performance curves, and installation guidelines.

Download PDF (2.5MB) →
🔧

Installation Manual

Step-by-step installation instructions, wiring diagrams, and commissioning procedures.

Download PDF (4.8MB) →
📐

CAD Drawings

Dimensional drawings, mounting specifications, and clearance requirements.

Download DWG (1.2MB) →
✅

Certification Certificates

CE, UL, VDE, AS/NZS, and other global certification documents.

Download ZIP (8.5MB) →
📱

Mobile APP Guide

User guide for GUANGXI Smart Home APP with monitoring and control features.

Download PDF (3.2MB) →
🎥

Installation Video

Professional installation demonstration video (English subtitles).

Watch on YouTube →
